Mobile Home Water Heater Repair, From Symptom to Part
The short version
- HomeGuide's national spread for a tank repair is $150 to $700, average $455, with a $50 to $200 minimum call-out charged before anyone opens a panel.
- HomeGuide names thermocouple and gas control valve as the common gas repairs. On electric tanks it is the element.
- Reliance lists mobile home tanks with a single 1,500 watt element on 120 volts, so the upper against lower diagnosis does not apply to them.
- Cramped closets add $125 to $300 per labor hour in HomeGuide's figures, and a manufactured home closet is framed to the tank.
- Past ten years old, or a repair worth more than half a replacement, HomeGuide says stop repairing.
Most mobile home water heater repair work runs $150 to $700, and HomeGuide puts the national average at $455 across 349 reported projects. The order of failure is predictable: thermocouple, element, thermostat, gas valve.
The tank itself is rarely first to go. What decides the invoice is the closet the part lives in, and how much of the hour goes into reaching it.
Standing water under that closet right now? Shut the supply and the fuel off, then reach a plumber at (800) 555-0176.
Mobile home water heater not working: five checks that cost nothing
Start where the money is smallest: HomeGuide prices a blown fuse or tripped breaker at $10 to $20, and a service call alone carries a $50 to $200 minimum.
- Read the rating plate. Voltage, wattage, element count, gallons, model. That sticker settles half the diagnosis, and a plumber who hears it by phone brings the right part.
- Breaker first, fuse second. A tank gone cold overnight with no other symptom is a tripped breaker until proven otherwise. Reset it once; a second trip is a fault, and the panel stays shut for someone qualified.
- Read the pilot through the sight glass. Open nothing. Smell gas at any point and the checklist ends: leave, shut the fuel off outside if that is safe, phone from the yard.

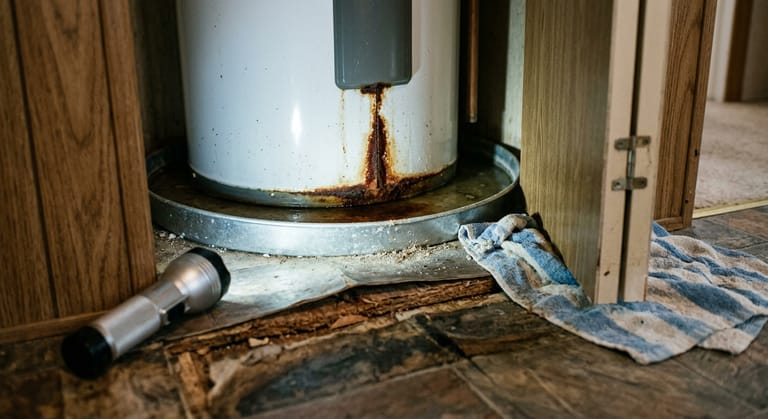

- Check the pan. Under 24 CFR 3280.709(h) a pan belongs beneath the tank, routed so a leak leaves the home instead of the floor. Water standing in it means it already started.
- Feel the door and the floor. A warm door, a damp carpet edge or a soft board means this ran longer than the symptom suggests.
Those five cost nothing, and they are where an owner should stop. What comes next means a live junction box or an open gas valve, which partner plumbers take on a fixed diagnostic. The call itself is not billed.
Lukewarm all day, or hot gone in ten minutes
Two symptoms split the elements in HomeGuide's reading: warm all day but never hot is the upper one, a first shower that turns cold early is the lower. Thermostats fail along the same line on a two element tank.
That split evaporates in a manufactured home. Richmond catalogues its manufactured housing electric line in single and double element versions, and Reliance sells mobile home tanks with one 1,500 watt element on 120 volts. With one element there is nothing to compare, and a slow reheat is what was bought, not what broke.
Match the wattage on the plate, not on the shelf. Reliance sells a 40 gallon mobile home unit at 240 volts and 3,800 watts, a number that barely exists on site built lines, and a generic 4,500 watt element pulls more than that circuit was built for. Richmond publishes what the wattage buys: 17 gallons an hour of recovery at 3,500 watts, 21 at 4,500.
With the breaker off and the terminals proven dead by meter, an element swap is within reach of a confident owner. What you cannot prove dead belongs to a licensed pro.

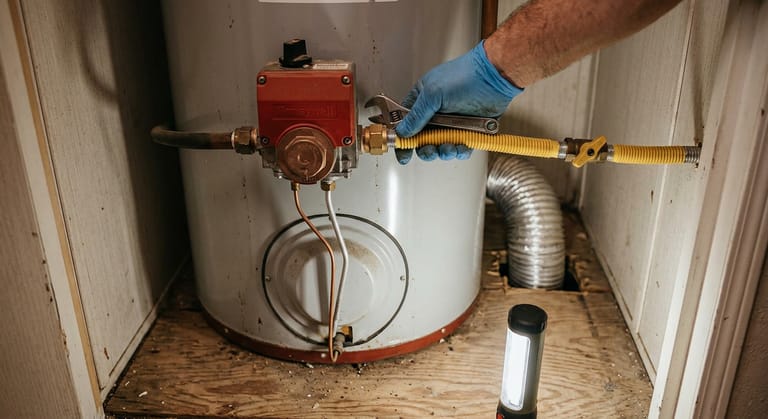

No flame on a gas tank: pilot, thermocouple, valve
HomeGuide names the thermocouple and the gas control valve as the most common gas repairs, at $100 to $325 and $150 to $550.
The sealed design changes the diagnosis. A. O. Smith's manufactured housing direct vent manual certifies the tank as a sealed unit, rules out a draft diverter, and pulls burner air from outdoors along the duct packed with it, 3 inches at 30 and 40 gallons, 4 inches at 50. Flatten that duct or block the roof jack and, from inside the home, the symptom is indistinguishable from a dead thermocouple.
Rheem and its Richmond brand also list a flammable vapor detection system with an air fuel shut off device on their manufactured housing atmospheric models, described as disabling the heater when flammable vapor accumulates. A unit that quit after fuel or solvent sat in that closet may have done its job.
Shut the gas off first, then stop. Relighting a pilot by the instructions printed on the unit is owner work. A thermocouple, a valve, a burner or any piece of venting is not: this appliance stays safe only while its combustion system is sealed off from the rooms.
What a mobile home water heater repair costs, part by part
HomeGuide's national ranges for tank units, all housing types, not quotes. These homes sit at the friendly end on parts, the rough end on access.
| Job | Range | Why it lands on this list |
|---|---|---|
| Thermocouple | $100-$325 | The most common gas repair |
| Gas control valve | $150-$550 | The other common gas failure |
| Heating element | $100-$350 | The usual electric failure |
| Thermostat | $100-$350 | Mimics a dead element |
| Relief valve | $50-$300 | Side mounted here, so the discharge line moves too |
| Leak repair | $100-$1,000 | Access rules the labor |
| Fuse or breaker | $10-$20 | Check it before booking anyone |
Talk it through with a mobile home plumber
Call (800) 555-0176Free to dial. You reach a licensed plumber who works on manufactured homes.Partner plumbers who service manufactured homes- Plumbers who actually work on manufactured homes
- Line answered day and night, all year
- Dialing costs you nothing
- Price talk happens between you and the plumber
The closet is why a small repair bills like a big one
A. O. Smith's manufactured housing manual explains that labor line by itself. Sides: 0 inches. Back: 0 inches. Jacket front to the door: 4 inches. Then 24 inches of clear space in front, purely for servicing.
Nothing to spare at the sides means the walls went up around this exact tank. HUD still wants the appliance held against displacement yet reachable and removable, at 24 CFR 3280.709(a), and the maker satisfies that with the bracket kit in the carton.
The access surcharge is published, not invented. HomeGuide loads $125 to $300 onto every labor hour worked in cramped space, closets named specifically. That is how two hours of wrench time bills like four. If the tank has to come out, what a replacement install involves covers the roof jack kit, the pan and the brackets.
Leaks: the pan, the relief line and the belly
Relief valves on these tanks sit on the side, stated across Richmond's manufactured housing pages and confirmed by A. O. Smith offering no top option at all. That fixes where the discharge line runs, and HUD is specific about it.
24 CFR 3280.609(c)(1)(iii) sends that line outdoors on its own at full size and bars ending it under the floor, finishing 6 to 24 inches over grade, untrapped, outlet left in sight.
A line dumping into the floor cavity instead of daylight is a classic find in the field. It hides a weeping valve for years while soaking insulation, so a wet belly and a dry closet often trace to one tank. Where the wrap has taken water, wet insulation under the floor becomes the second repair.
Repair or replace, and where the listing decides it
HomeGuide's two pages disagree with each other on lifespan, one printing 8 to 15 years and the other 8 to 12, so plan around 8 to 12. Its cutoff for stopping repairs: a tank past ten, or a bill worth more than half a new install.
Repairing still makes sense
- tank under eight years, dry pan, sound floor
- one failed part, one clear symptom
- the quote lands under half a replacement
Replace instead
- rust weeping from a tank seam or the jacket
- a second repair inside one year
- gas valve or major leak on a tank past ten
Replacement is where the HUD listing stops being paperwork. Federal text at 24 CFR 3280.609(a)(2) will not take an unlisted water heater in a home with a sink and a bath, and 3280.709(d) will not take an appliance whose combustion system shares air with the rooms: either a sealed unit, or a compartment with no opening inward. HomeGuide's installed ranges are $500 to $1,900 at 30 gallons and $600 to $3,000 at 40. Before shopping on price, read why a standard residential tank does not drop in.
Mobile home water heater repair near me: what to ask before booking
Searching by location gets a list. These five questions get the right van.
- Have you set a roof jack and vent on a manufactured home before?
- What is the diagnostic fee, and does it come off the repair?
- Will the quote name the model from my rating plate?
- Does the price include the pan and the relief discharge line?
- If this turns into a replacement, what does the same visit cost?
A plumber who has never met a zero clearance closet quotes it like a garage install, so ask all five before booking anyone.
Where the reading stops and the call starts
Free: breaker, pilot glass, pan, plate, floor. Owner work with the power confirmed off: element, thermostat. Gas parts, venting, combustion air, relief piping and 240 volt terminals are licensed work.
Haverlane is a publication, not a plumbing outfit. Call (800) 555-0176 when you want a diagnosis instead of another guess: the call carries no charge, a licensed plumber who repairs manufactured homes picks it up, and the price is agreed before the closet door opens.
